1/4 x 3/8 FPT Low Pressure Single Stage Regulator
1/4 x 3/8 FPT Low Pressure Single Stage Regulator
Bergquist
Low stock
Couldn't load pickup availability
PRODUCT DESCRIPTION

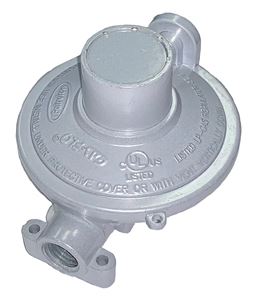

Berquist Low Pressure 90.000 BTU Fixed Single Stage LP Gas Regulator (1/4" Inlet x 3/8" FPT Outlet)
MEGR-230 Specifications:
Type: Single Stage
Orifice Diameter: .059 Dia
BTU Capacity: 140,000 BTU (based on 25 PSI inlet @ 9” W.C. delivery pressure)
Max. Inlet Pressure: 250 PSI
Inlet Connection: 1/4” FNPT
Outlet Connection: 3/8” FNPT
Exterior Finish: Gray
Diaphragm: Molded with O-Ring Bonnet / Body Seal
Diaphragm Type: Internal Relief - Spring Loaded
Bonnet / Body Material: Die Cast Aluminum
Listings: UL LISTED / UL 144
Mounting Holes: 3-1/2” On Center
